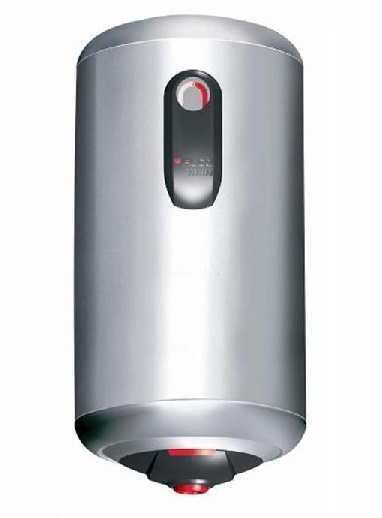

WATER HEATER ELCO TITAN 80 L FLOOR

Home page \ Products \ Boiler - Water Heaters - Storage Tanks \ ELCO \ TITAN \ WATER HEATER ELCO TITAN \ WATER HEATER ELCO TITAN 80 L FLOOR

Product code: 06910

Out of stock

Capacity: 80 liters
Suitable capacity for 3-4 people
Steel boiler of special specifications tested at 16 bar
Internal protection of the boiler with a special TITAN glazing coating
Boiler cathodic protection with two extra large ELCO-manufactured magnesium rods
3.0 kW or 3.7 kW low load resistor 316L
Safety thermostat with built-in special thermoelectric fuse
Safety valve with membrane and drain
External temperature controller
Outdoor thermometer (VERTICAL & HORIZONTAL WALL models)
Power indicator light
Large inspection flange for easier water heater maintenance
Reinforced ecological polyurethane insulation
The only one with a 10-year warranty

Water Heater Models: WALL VERTICAL, WALL HORIZONTAL, WALL HORIZONTAL LEFT & STAIRCASE FLOOR
Dual-energy water heater (Boiler) models: VERTICAL WALL, HORIZONTAL WALL, & STATION FLOOR

TECHNICAL CHARACTERISTICS OF HEATERS
ELCO DURO GLASS 80 L & ELCO DURO GLASS 80 L BOILER

CAPACITY	L	80	80 BOILER
ELECTRICAL POWER	kW	3,0 / 3,7	3,7
DRIFT	A	13,0 / 16,0	16,0
VOLTAGE (50/60Hz)	V	220-240	220-240
CONNECTION CABLE CROSS SECTION	mm²	4	4
CONNECTION TO THE HYDRAULIC NETWORK		G ½”	G ½”
OPERATING PRESSURE	bar	Maximum allowed 10
THERMOSTAT	Control range from 30 to 80^oC, protection with thermoelectric fuse
INSULATION	Rigid HCFC-free expanded polyurethane at least 25 mm thick
DEGREE OF PROTECTION	IP23
WEIGHT (EMPTY)	kg	26	31
INDICATIVE HEATING TIME ΔT 45oC	Hours: minutes	1:37 / 1:13	In 20 minutes you already have enough hot water

DIMENSIONS OF HEATERS
ELCO DURO GLASS 80 L & ELCO DURO GLASS 80 L BOILER

DIMENSIONS (mm)			PACKAGE DIMENSIONS (mm)
L	LENGTH	DIAMETER	LENGTH	WIDTH	HEIGHT
80	800	450	881	500	500
