VERSATI III All-In-One
AIR / WATER HEAT PUMPS
The All-In-One is a split heat pump system that integrates a 185-liter domestic hot water tank to provide greater home comfort, ease of installation, and economy.
The All-In-One version is available in power from 4 to 16 kW and is recommended for installations with limited space and a domestic hot water requirement.
To produce domestic hot water, it uses a plate exchanger for increased efficiency and reduced electricity.
All-in-One system with integrated 185L DHW tank

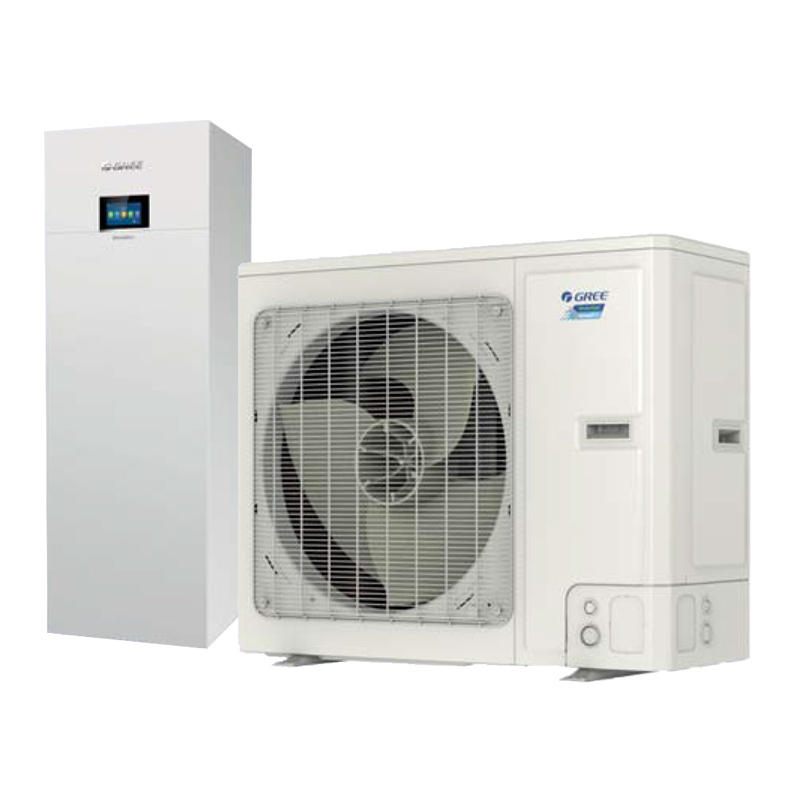

• The All-in-One version consists of the hydraulic unit with the integrated DHW tank (internal) and the cooling unit (external).
• Standard auxiliary 2-step electrical resistors 3kW + 3kW for heating.
• The All-in-One version will be chosen:
- When there is a requirement for the production of domestic hot water.
- When external temperatures are extremely low.
- When the distance between the consumption and the unit is large.
- When the external and internal space is limited.
• Refrigerant R32, low GWP.
• Standard Golden Fin anti-corrosion protection on the air-cooled exchanger.
• Connection to underfloor heating systems, fan coils, and panel bodies.
• Plate exchanger for the production of domestic hot water, achieving economy and production speed.
• Standard 1.5kW electric resistance integrated into the domestic hot water tank.
Components and cutting-edge technology
• The Versati III All-in-One incorporates EVI (Enhanced Vapour Injection) technology for guaranteed performance at low outdoor temperatures.
• The two-stage compressor and the electronic expansion valve contribute precisely to transferring heat from the external environment to the water, achieving high energy efficiency in extreme conditions.
• Smart defrost function for increased performance at low outdoor temperatures.
Other functions
• Water temperature compensation function according to outdoor conditions.
• Wi-Fi Standard for IOS/Android.
• The domestic hot water disinfection function ensures the elimination of bacteria by supporting the electrical resistance.
• The Modbus interface allows remote management via a BMS system.
• Ability to limit the absorbed current.
• Operating modes: direct DHW production, away from home, automatic, time program, silent operation, heating-cooling network & DHW bleeding function, drying program for underfloor heating installations.
 |
