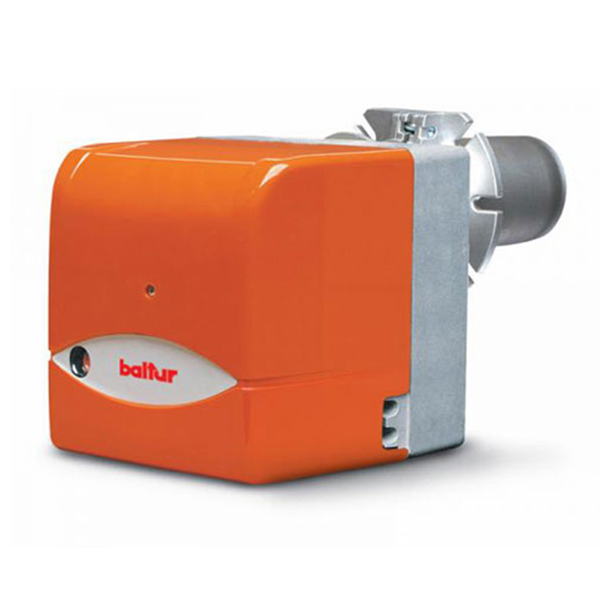

BALTUR BTL 26 Oil Burner

Available upon request at 2 days

There are 0 products in cart

Quantity:

BALTUR BTL 26

Characteristics

Specifications

Oil burner according to the European Directive ΕΝ267
Single-stage operation.
Ability to achieve optimal combustion values by adjusting air and head position.
Easy maintenance because the dispersion unit is accessible without the need to remove the burner from the boiler.
Long nozzle with rolling flange to adapt the burner to any type of boiler.
Mechanical air intake adjustment damper.
The damper with the total block at the burner pauses to reduce thermal losses.
Pump with filter for fuel supply.
Photoresistor for flame detection.
Ionization electrode for flame detection and provision for micro-ammeter connection (mA)
Seven-pole quick connector for electrical and thermostatic connection.
Degree of electrical protection IP40
Sound-insulating protective cover.
3-year warranty

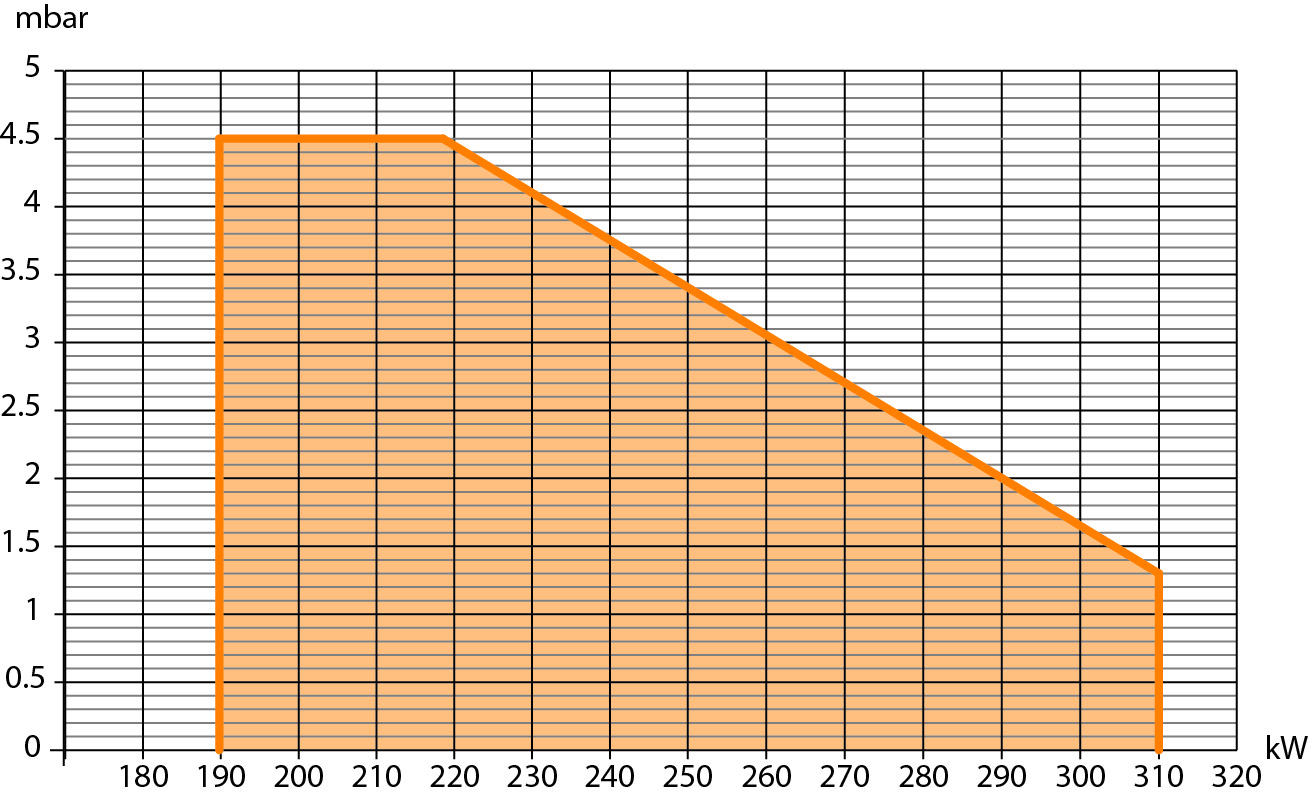

Power Diagram

Burner dimensions

Flange Dimensions
