Prime Guard fin protection is a hydrophilic coating that prevents the growth and spread of bacteria from the outer and inner element surfaces. In addition, it improves heat dissipation characteristics and reduces defrosting time. The aluminum fins' unique anti-corrosion gold surface protection makes them resistant to corrosive factors such as rain, sea breeze, etc.
Wi-Fi Standard mode
Activate your air conditioner and adjust its temperature remotely, through the smart application.
Super Ionizer
The Super Ionizer eliminates odors, dust, smoke, and pollen particles, releasing anions and cations, and offering fresh and healthy air.
Specifications
| Rated Output Btu/h |
24000 |

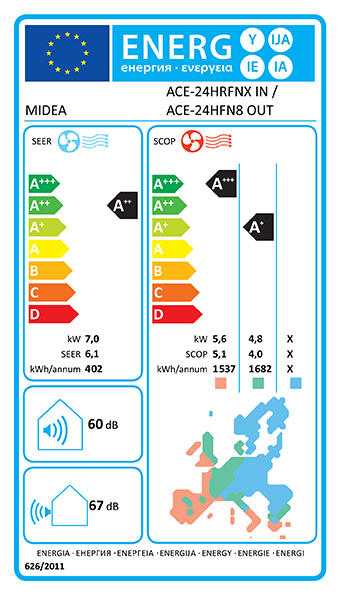

| Cooling Energy Class |
A++ |
| Heating Energy Class (Heat Zone) |
A+++ |
| Heating Energy Class (Middle Zone) |
A+ |
| Warranty |
10 years, based on warranty conditions |
| Technology |
Inverter |
| Operation Type |
C/H |
| Wi-Fi function |
Standard |
| Operating Voltage V-Hz-Ph |
220V-240V, 50Hz, 1Ph |
| Cooling Efficiency Btu/h |
24000(7100~27000) |
| Thermal Efficiency Btu/h |
25000(5500~27000) |
| Power Input Cooling W |
2600(420~3150) |
| Power Input Heating W |
2400(300~2750) |
| Operating Current Cooling A |
11.5(1.8~13.8) |
| Operating Current Heating A |
11(1.3~12.2) |
| Seasonal Energy Efficiency Rating (SEER) Cooling |
6.1 |
| Seasonal Coefficient of Performance (SCOP) Heating (Average) |
4.0 |
| Seasonal Coefficient of Performance (SCOP) Heating (Heat) |
5.1 |
| Indoor Unit Noise Level dB(A) (H/M/D/H) |
45.0/40.5/36/24 |
| Outdoor Unit Noise Level dB(A) (H) |
67 |
| Air Supply m³/h (H/M/D) Internal |
980/817/662 |
| Air Supply m³/h (H) External |
3500 |
| Indoor Unit Dimensions (W x D x H) mm |
|
| Outdoor Unit Dimensions (W x D x H) mm |
|
| Net Weight of Indoor Unit Kg |
12.3 |
| Net Weight of Outdoor Unit Kg |
42.9 |
| Diameter of Liquid/Gas Piping mm |
|
| Maximum Piping Length m |
50 |
| Maximum Altitude Difference m |
25 |
| Indoor Temperature Operating Range (Cooling) ℃ |
17~32 |
| Outdoor Temperature Operating Range (Cooling) ℃ |
-15~50 |
| Operating Range Indoor Temperature (Heating) ℃ |
0~30 |
| Outdoor Temperature Operating Range (Heating) ℃ |
-25~30 |
| Coolant Liquid |
R32 |
| Series |
Ace |
| Midea type |
Wall |
