VERSATI III Split

VERSATI III Split
AIR / WATER HEAT PUMPS

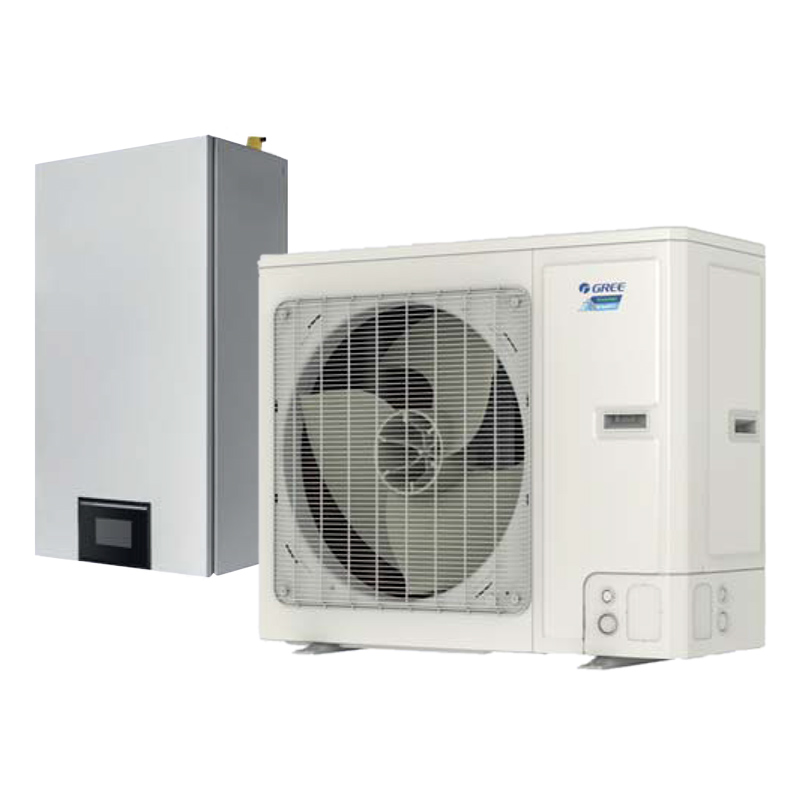

The Versati III Split is a split heat pump system.
It has a power ranging from 8 to 16 kW and supports:
• underfloor heating, panel radiators or fan coil for cooling/heating and
• the addition of an appropriate tank supports domestic hot water production with direct connection due to the integrated 3-way in the hydraulic unit.

Split system with hydraulic kit and inverter circulator

• The split version consists of the hydraulic unit (indoor) and the cooling unit (outdoor).
• Standard auxiliary electrical resistors 2 steps 3kW + 3kW.
• The split version will be chosen:
- When outdoor temperatures are extremely low.
- When the distance between the consumption and the unit is large.
- When the outdoor space is limited.
• Refrigerant R32, low GWP.
• Standard Golden Fin anti-corrosion protection on the air-cooled exchanger.
• Connection to underfloor heating systems, fan coils, panel bodies, and domestic hot water tank.
• Integrated 3-way in the indoor unit for domestic hot water production.

Components and cutting-edge technology
• The Versati III Split type incorporates EVI (Enhanced Vapour Injection) technology for guaranteed performance at low outdoor temperatures.
• The two-stage compressor and the electronic expansion valve contribute precisely to transferring heat from the external environment to the water, achieving high energy efficiency in extreme conditions.
• Smart defrost function for increased performance at low outdoor temperatures.

Other functions
• Water temperature compensation function according to external conditions.
• Wi-Fi Standard for IOS/Android.
• The hot water disinfection function ensures the elimination of bacteria by supporting the electrical resistance.
• The Modbus interface allows remote management via a BMS system.
• Ability to limit the absorbed current.
• Operating modes: direct DHW production, away from home, automatic, time program, silent operation, heating-cooling network & DHW bleeding function, drying program for underfloor heating installations.

Energy class A+++
Water outlet at 60°C
Operation at extreme temperatures
