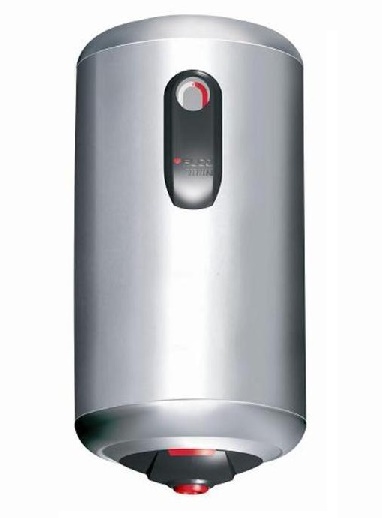

WATER HEATER ELCO TITAN 120 L VERTICAL

Home page \ Products \ Boiler - Water Heaters - Storage Tanks \ ELCO \ TITAN \ WATER HEATER ELCO TITAN \ WATER HEATER ELCO TITAN 120 L VERTICAL

Product code: 06910

Out of stock

Capacity: 120 liters
Suitable capacity for 5-6 people
Steel boiler of special specifications tested at 16 bar
Internal protection of the boiler with a special TITAN glazing coating
Boiler cathodic protection with two extra large ELCO-manufactured magnesium rods
3.7kW 316L low-load resistor
Safety thermostat with built-in special thermoelectric fuse
Safety valve with membrane and drain
External temperature controller
Outdoor thermometer (VERTICAL & HORIZONTAL WALL models)
Power indicator light
Large inspection flange for easier water heater maintenance
Reinforced ecological polyurethane insulation
The only one with a 10-year warranty

Water Heater Models: VERTICAL WALL, HORIZONTAL WALL & FLOOR GLASS
Dual-energy water heater (Boiler) models: VERTICAL WALL, HORIZONTAL WALL, & STATION FLOOR

TECHNICAL CHARACTERISTICS OF HEATERS
ELCO DURO GLASS 120 L & ELCO DURO GLASS 120 L BOILER

CAPACITY	L	120	120 BOILER
ELECTRICAL POWER	kW	3,7	3,7
DRIFT	A	16,0	16,0
VOLTAGE (50/60Hz)	V	220-240	220-240
CONNECTION CABLE CROSS SECTION	mm²	4	4
CONNECTION TO THE HYDRAULIC NETWORK		G ½”	G ½”
OPERATING PRESSURE	bar	Maximum allowed 10
THERMOSTAT	Control range from 30 to 80^oC, protection with thermoelectric fuse
INSULATION	Rigid HCFC-free expanded polyurethane at least 25 mm thick
DEGREE OF PROTECTION	IP23
WEIGHT (EMPTY)	kg	36	41
INDICATIVE HEATING TIME ΔT 45oC	Hours: minutes	1:50	In 20 minutes you already have enough hot water

DIMENSIONS OF HEATERS
ELCO DURO GLASS 120 L & ELCO DURO GLASS 120 L BOILER

DIMENSIONS (mm)			PACKAGE DIMENSIONS (mm)
L	LENGTH	DIAMETER	LENGTH	WIDTH	HEIGHT
120	1130	450	1211	500	500
