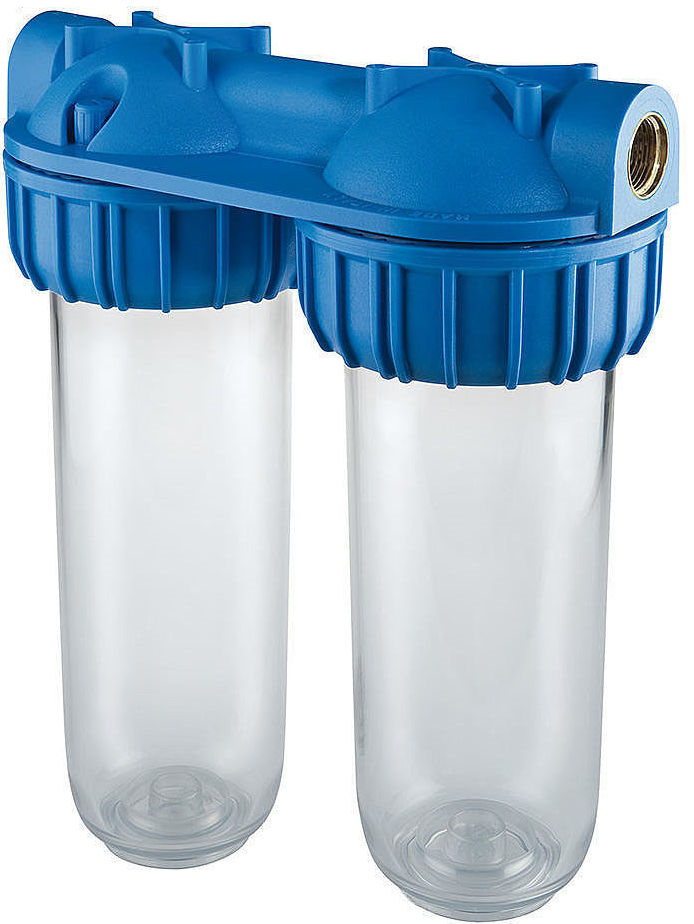

CENTRAL WATER SUPPLY FILTER DEVICE ATLAS MEDIUM DUPLEX 3P 3/4'' AFO SX AS 5''

Home page \ Products \ Water Filters \ WATER SUPPLY FILTERS \ CENTRAL SUPPLY DEVICES \ CENTRAL WATER SUPPLY FILTER DEVICE ATLAS MEDIUM DUPLEX 3P 3/4'' AFO SX AS 5''

Product code: 09391

available

There are 0 products in cart

Quantity:

Dimensions:

Width: 275mm

Height: 191mm

Description

Maximum working pressure: 8 bar (800kPa)
Maximum operating temperature: 45Co
HEAD/FITTING MATERIAL: REINFORCED POLYPROPYLENE
GLASS MATERIAL: SAN
O-RINGS: ETP
BREATHER: POLYPROPYLENE, O-RING ETP
IN/OUT THREAD: CW 614 N BRASS INSERTS

Notes:

A pressure reducer is recommended before installing each filter.
When installing, use only Teflon tape
When changing the spare part, clean the flange of the glass, wipe it with water, put lubricant (Lubrikit) on it, and install it again.
When the gasket wears out it needs to be replaced.

All devices are guaranteed for 2 years

Below you will see the filters placed on the device.
