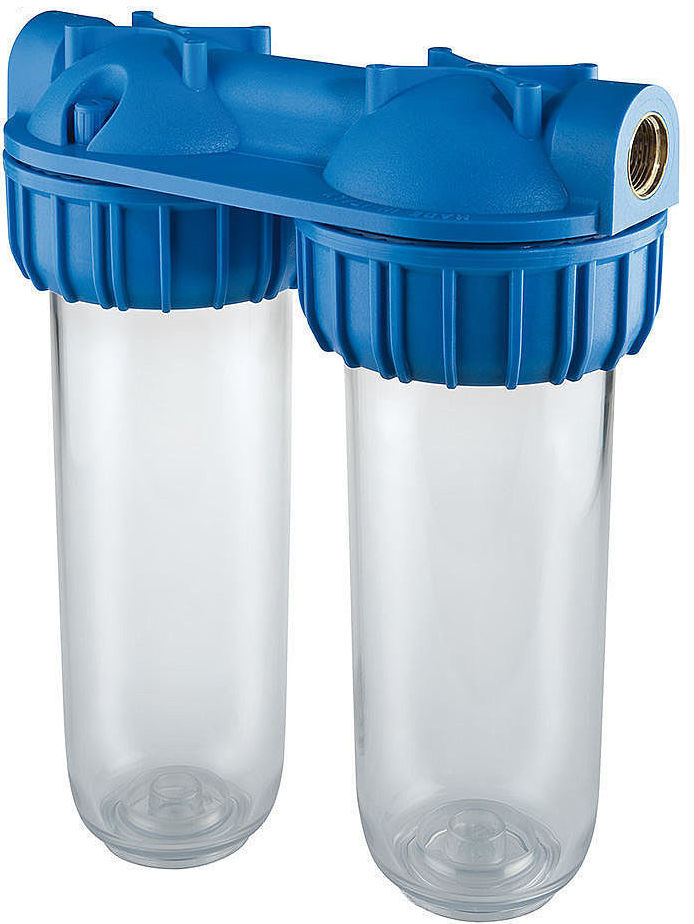

CENTRAL WATER SUPPLY FILTER DEVICE ATLAS JUNIOR DUPLEX 3P 3/4'' AFO SX TS 7''

Home page \ Products \ Water Filters \ WATER SUPPLY FILTERS \ CENTRAL SUPPLY DEVICES \ CENTRAL WATER SUPPLY FILTER DEVICE ATLAS JUNIOR DUPLEX 3P 3/4'' AFO SX TS 7''

Product code: 09388

available

There are 0 products in cart

Quantity:

Dimensions:

Width: 275mm

Height: 241mm

Description

Maximum working pressure: 8 bar (800kPa)
Maximum operating temperature: 45Co
HEAD/FITTING MATERIAL: REINFORCED POLYPROPYLENE
GLASS MATERIAL: SAN
O-RINGS: ETP
BREATHER: POLYPROPYLENE, O-RING ETP
IN/OUT THREAD: CW 614 N BRASS INSERTS

Notes:

A pressure reducer is recommended before installing each filter.
When installing, use only Teflon tape
When changing the spare part, clean the glass flange,
wipe it with water, put lubricant (Lubrikit) on it, and install it again.
When the gasket wears out it needs to be replaced.

All devices are guaranteed for 2 years
